VRX2-15-040T
Key features
– Multistage vertical pumps
– Low-water cut-out contacts in the panel
– Anti-vibration mounts reduce system noise
– Pressure set point adjustment
– Hours run log
– Local electrical isolation via internal MCB’s
– IP55-rated control panel allows for simple and safe maintenance
– Cyclic duty changeover ensures even wear across pumps
– Common fault volt-free contact for connection to building management systems
– RS485 connections for connection to Modbus
View VRX2-15-040T datasheet

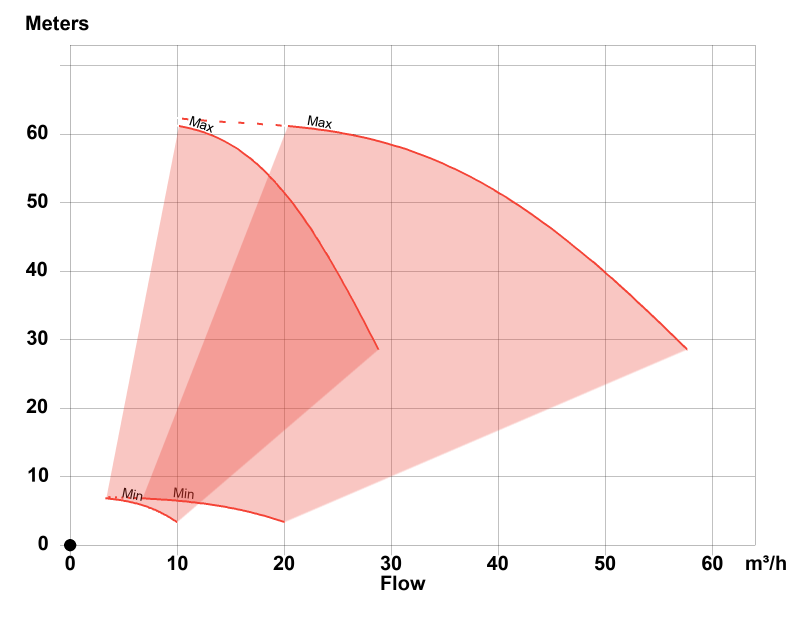

Range Performance
Number of pumps
2
Maximum working pressure
16.00 bar
Max system temperature
40.0 °C
Noise data
Motor at 2900 rpm < 70LpA (dB +/-3)*
*Higher temperature options available; please contact the sales team. **More specific details available on request.
Material Specification
Manifolds
AISI 304 stainless steel
Isolation valves
Nickel-plated brass
Non-return valves
AISI 304 stainless steel
Pressure transducers
AISI 304 stainless steel
Pump casing
AISI 304 stainless steel
Pump impellers
AISI 316 stainless steel
Mechanical seals
Silicon carbide, graphite, EPDM
Pressure vessels
Mild steel, WRAS approved
Base plate
Powder-coated mild steel
